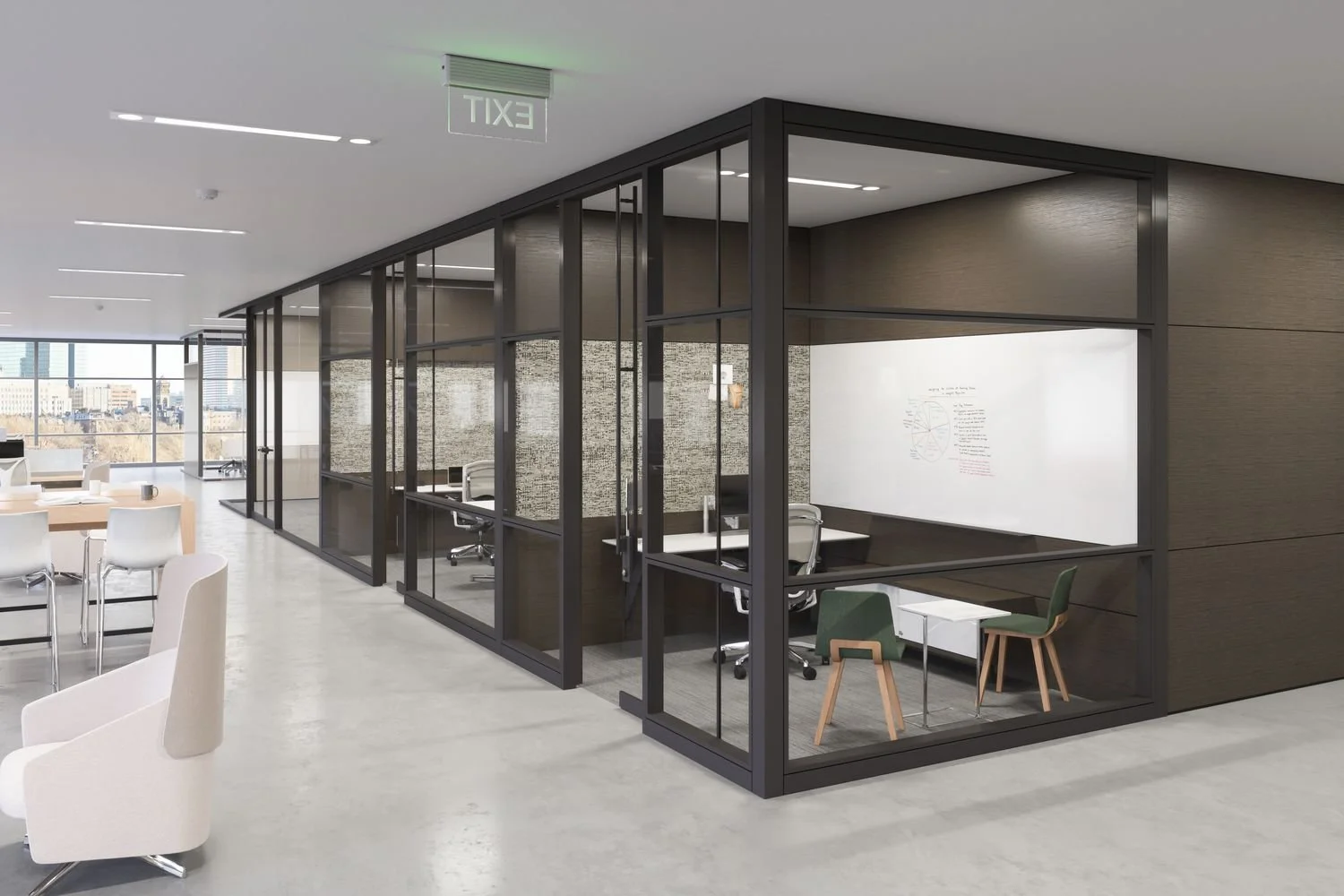

Tek Vue

Value + Simplicity
Tek Vue is a glass office-front system that responds to the essential needs of today’s workplace. The system focuses on single-center glazing and thin-profile frames, while providing effortless integration with conventional construction and existing Teknion wall programs.

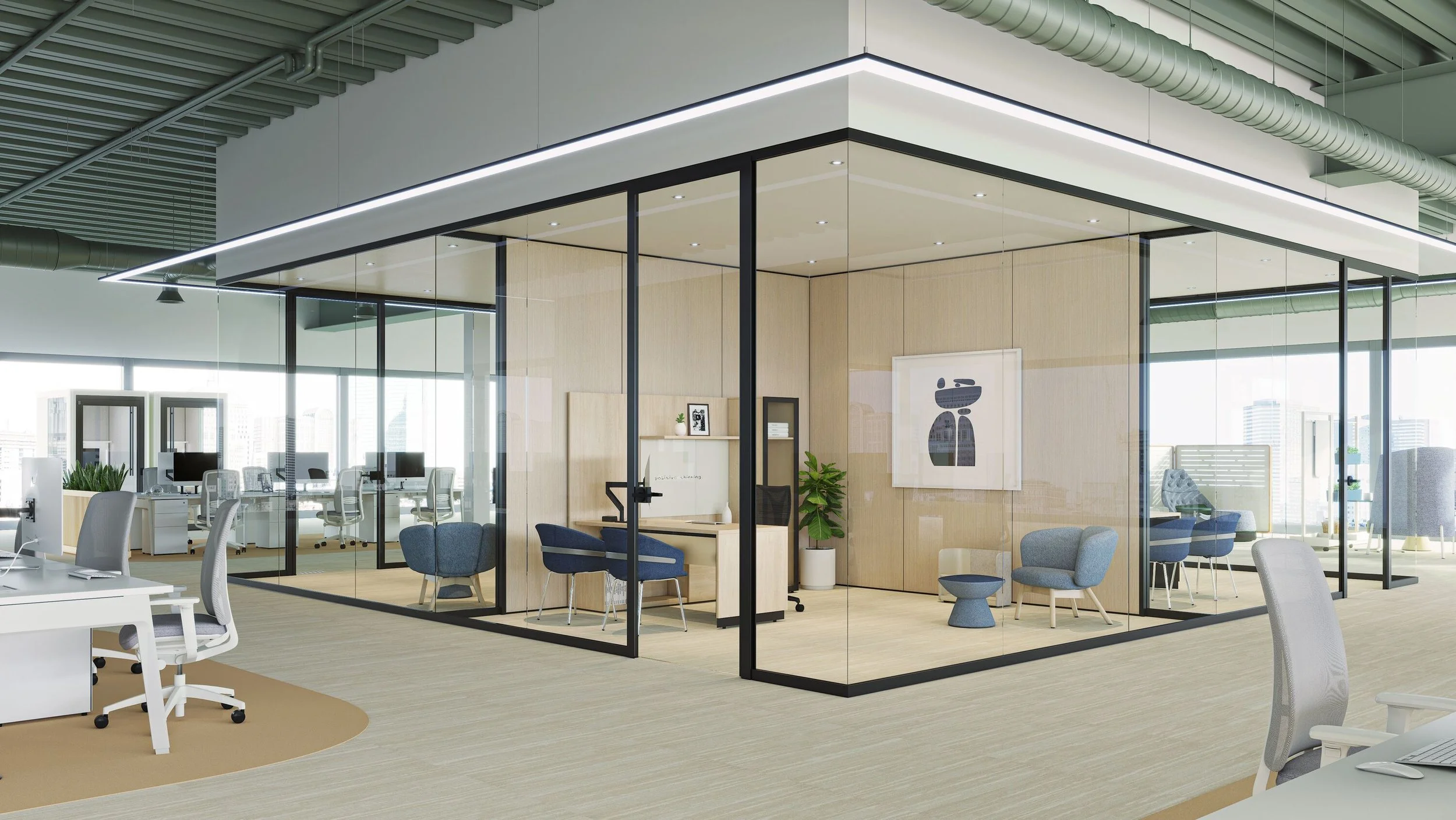

Tek Vue wall and door programs are built on the concept of a universal platform, which re-envisions how a system can be specified, planned and installed within the evolving world of interior architecture.

  • Sizing

    • Ceiling heights from 84" - 120" high in 1 /1 6 " increments

    • Fascia widths 12"- 48" in 1 /1 6 " increments

    • Base and ceiling frame 1 3 /8 " thick by 2 3 /8 " nominal height

    • Horizontal frame cut to length on site up to lengths of 121"

    Building Accommodation

    • Ceiling adjustment range: + 3 /4 ", - 3 /4 "

    • Floor adjustment range: + 1 /2 ", - 1 /4 "

    • Wall start adjustment range: + 1 /4 ", - 1 /4 " (min.)

    Fascia Offering

    • Single-centered glass only

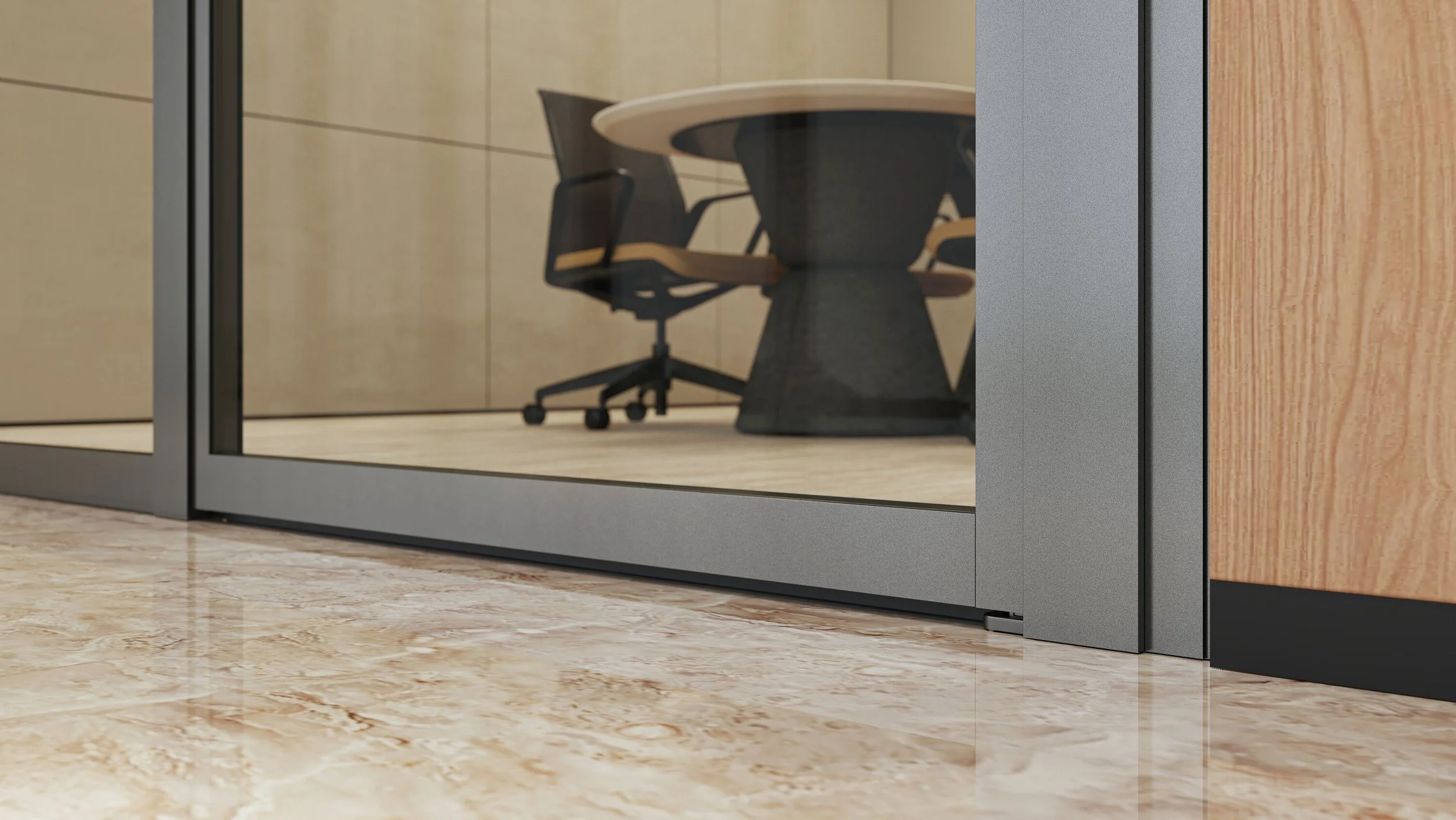

    Door Offering

    • Universal Pivot and Sliding door frames

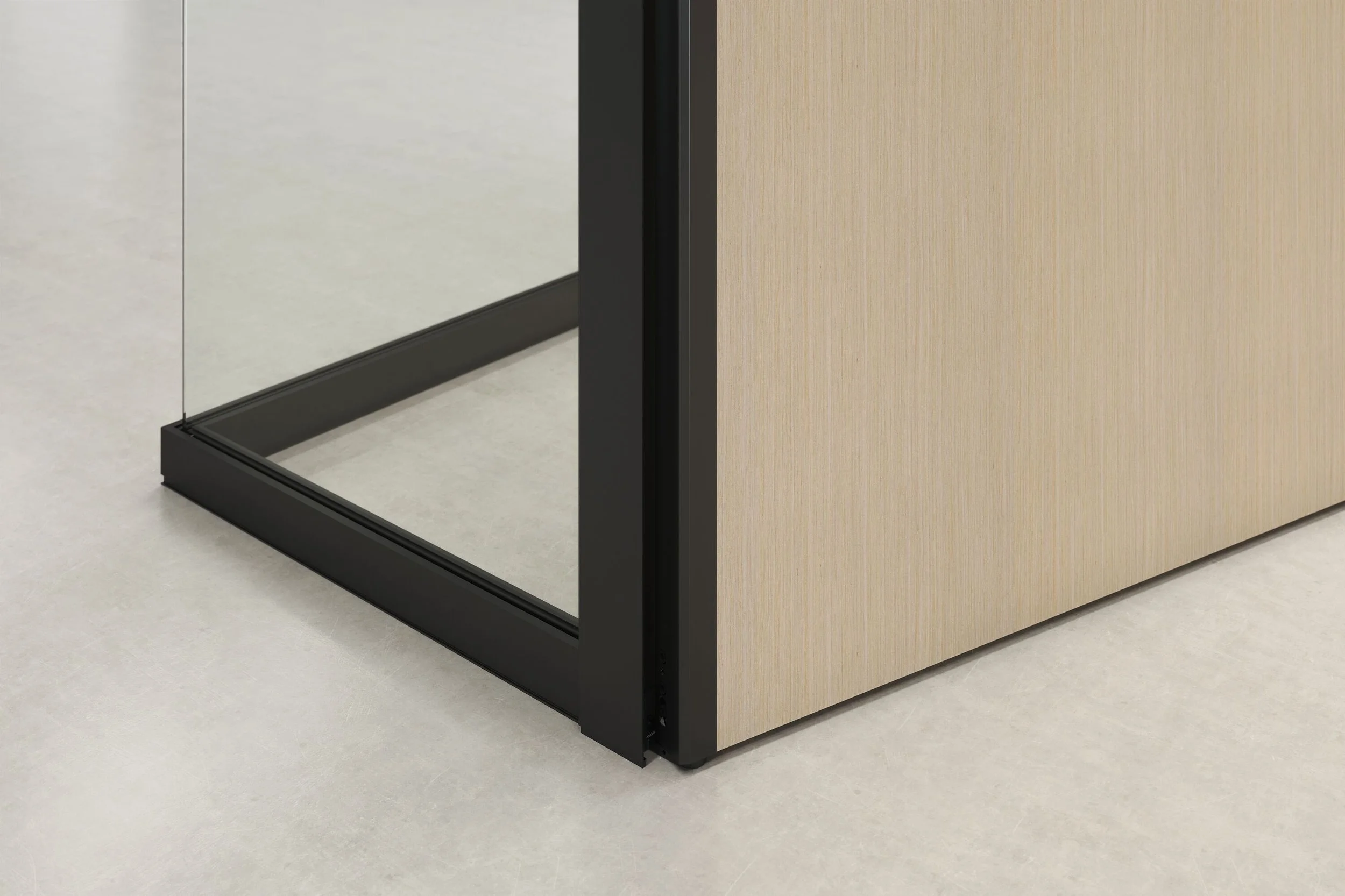

    • Frameless, Framed and Solid Pivot door

    • Frameless and Framed Sliding door

    Acoustics

    • Glass STC ratings up to 36 STC

    • Door STC ratings up to 35 STC

    Glass Options

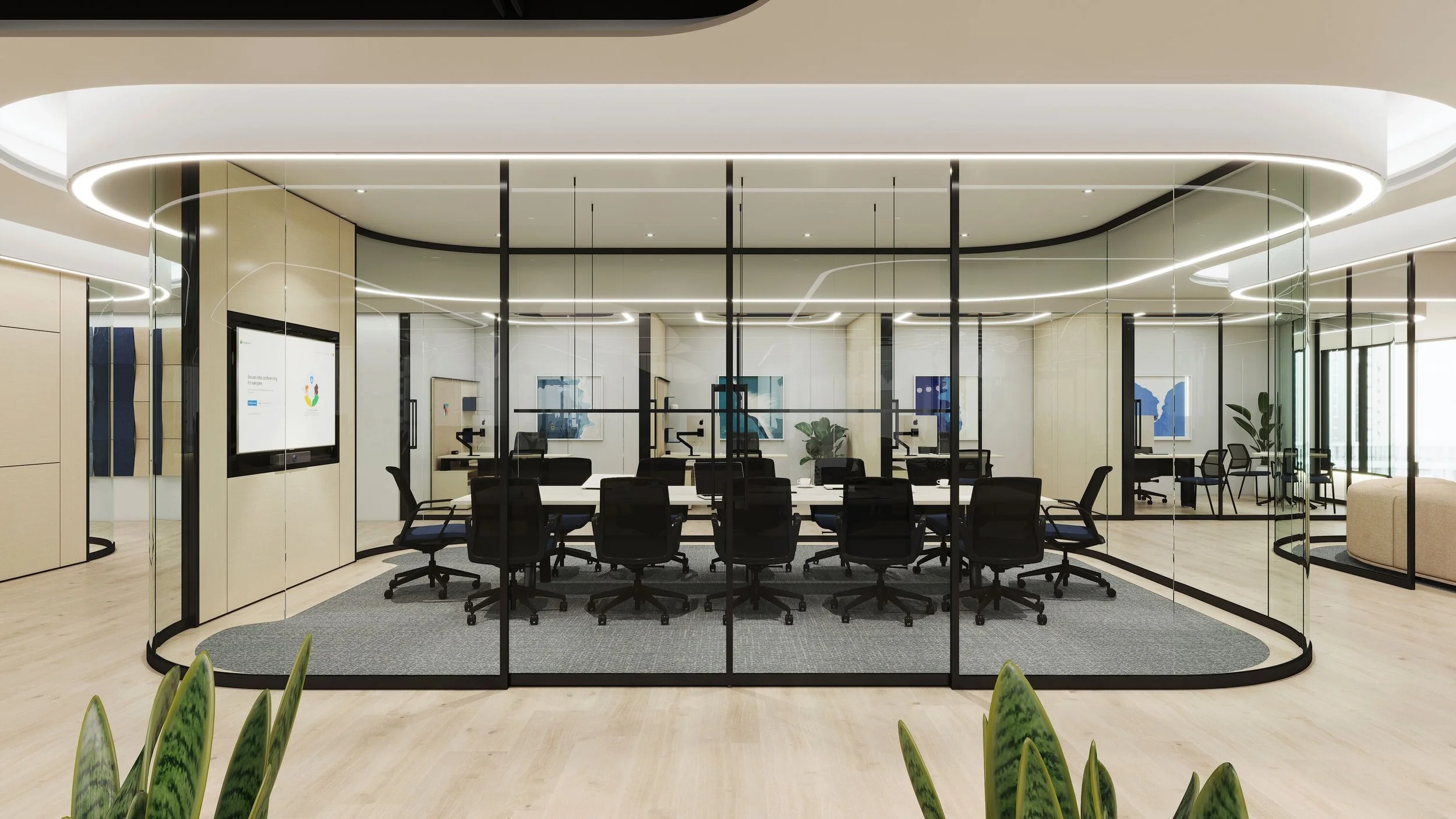

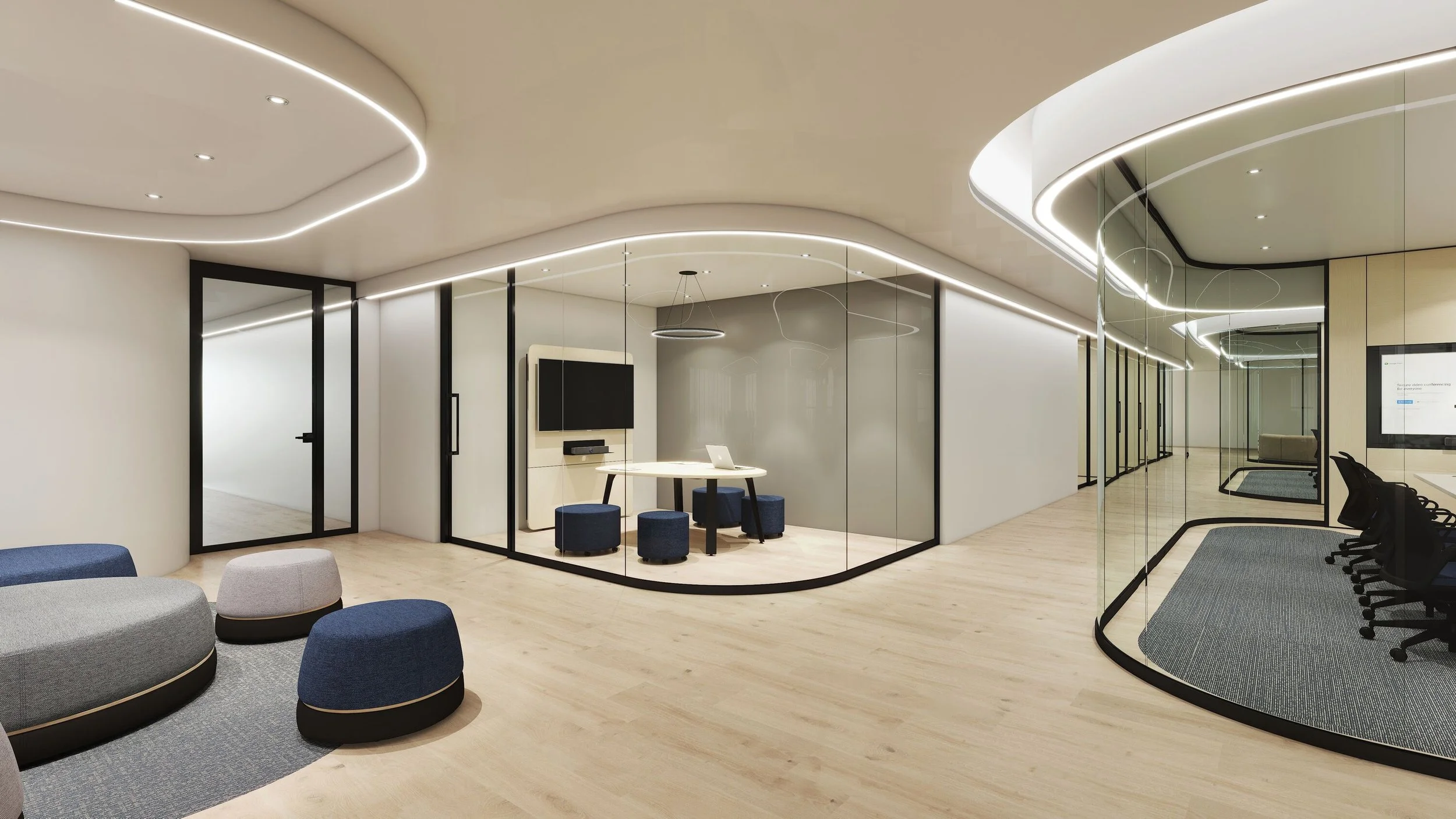

    • 10 and 12mm seamless straight and curved glass

    • Tempered and Laminated

    • Clear and Low Iron finishes

    Electrics

    • Low profile electrics program

    • Hard-wired

    Integration

    • Drywall/base building

    • Altos, Focus

  • Tek Vue Data Sheet

View Full Overview

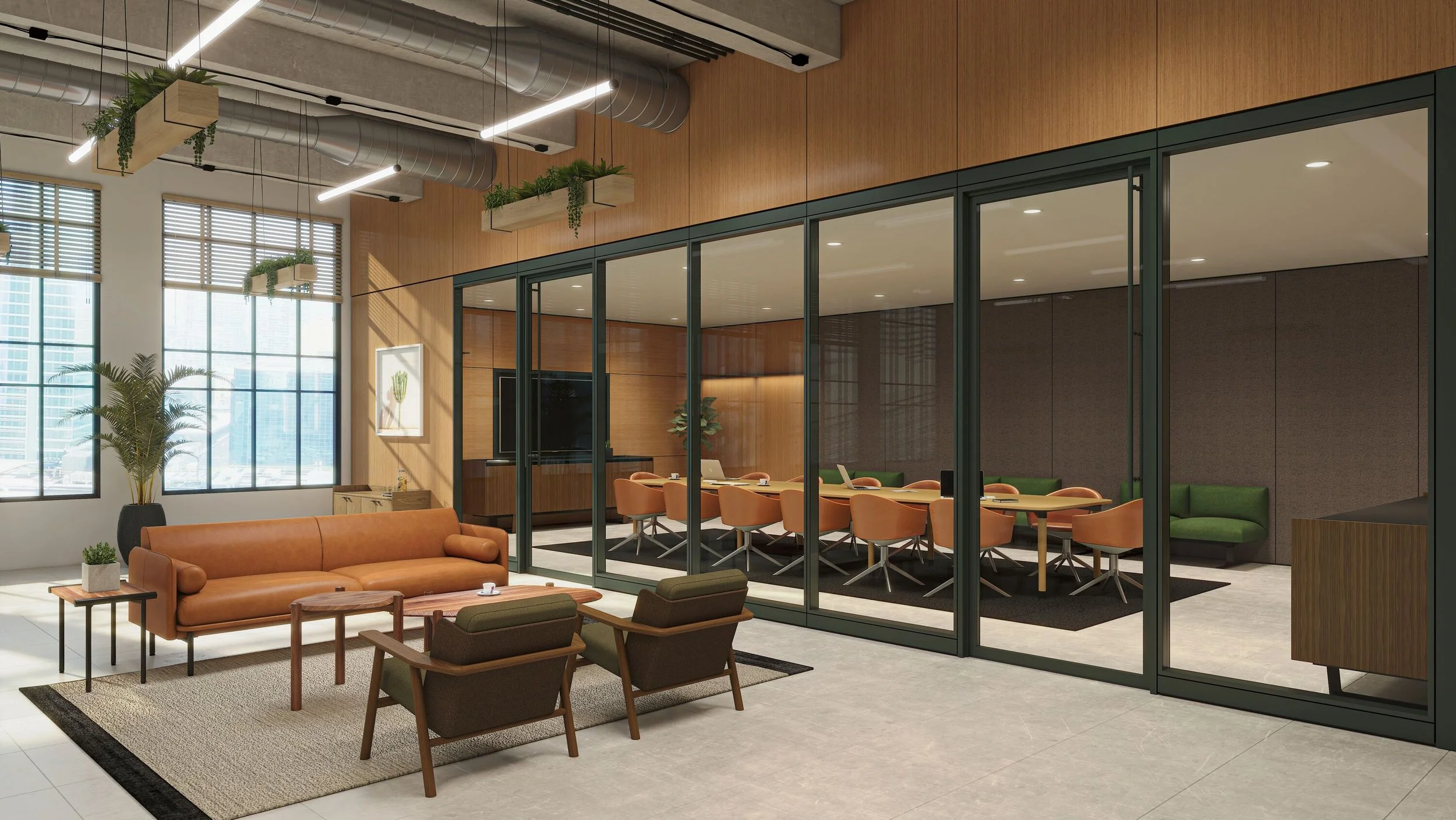

Altos

Form + Function
Altos is an innovative architectural wall system designed for maximum functionality while maintaining a clean aesthetic. Simple and efficient, Altos facilitates cost-effective reconfiguration or full relocation as required. Its unique universal framework allows changes in elevation, dimension, fascia function and finish to maximize the life of the product.

  • Sizing

    • Ceiling heights from 86" - 120" high in 1" increments

    • Fascia widths from 12" - 48" wide in 1" increments

    Building Accommodation

    • Ceiling adjustment range: + 1 1 /2 ", - 1 /2 "

    • Floor adjustment range: + 1 1 /2 ", - 1 /2 "

    Fascia Offering

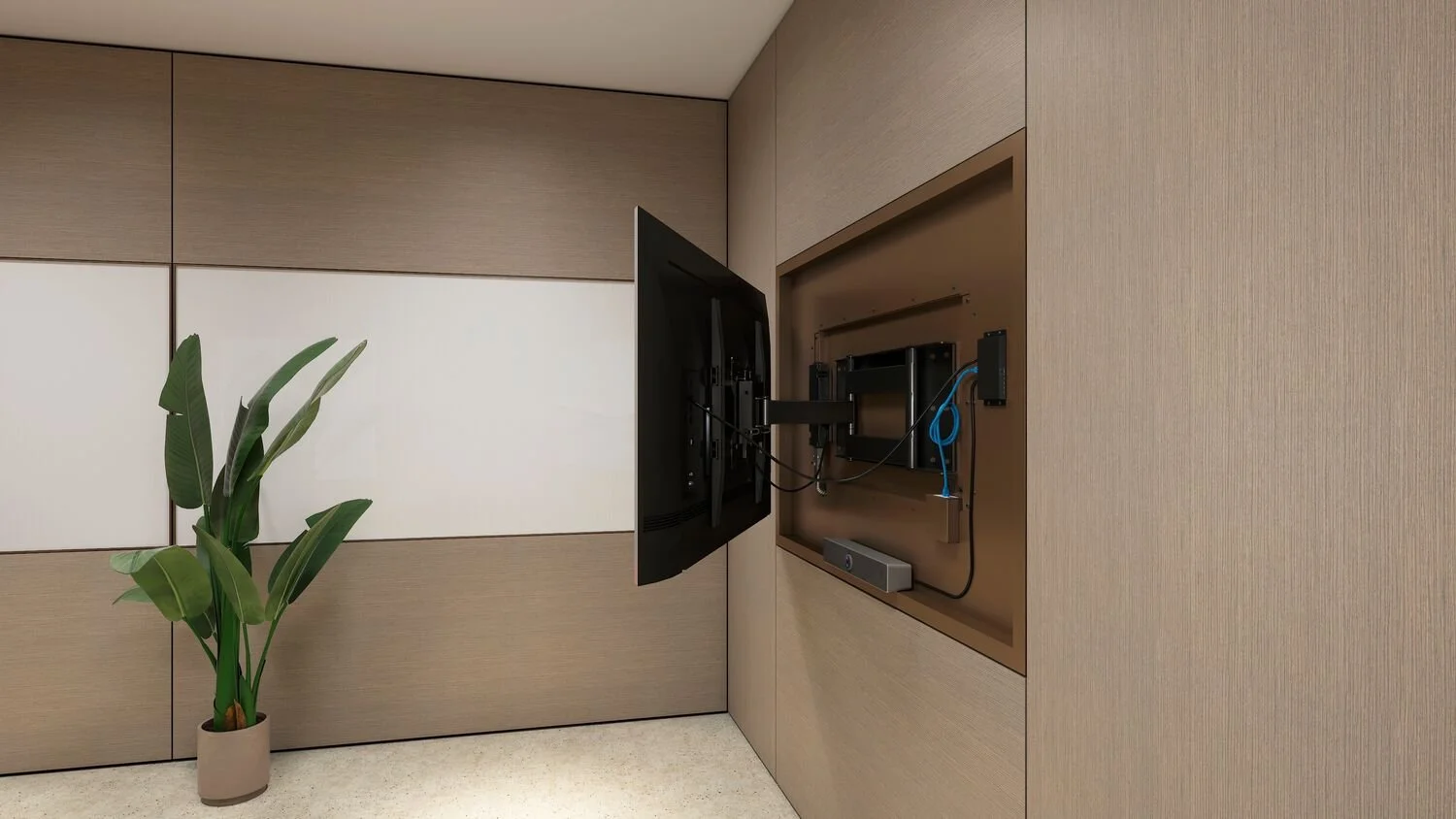

    • Solid, fabric-wrapped, acoustic and acoustic tackable fabric, single and double glass, backpainted glass, markerboard, whiteboard, aluminum, Acoustic Metal Micro Perforated, TV Shroud, and accessory mounting fascias

    • Compatible with Teknion’s Architectural finishes program

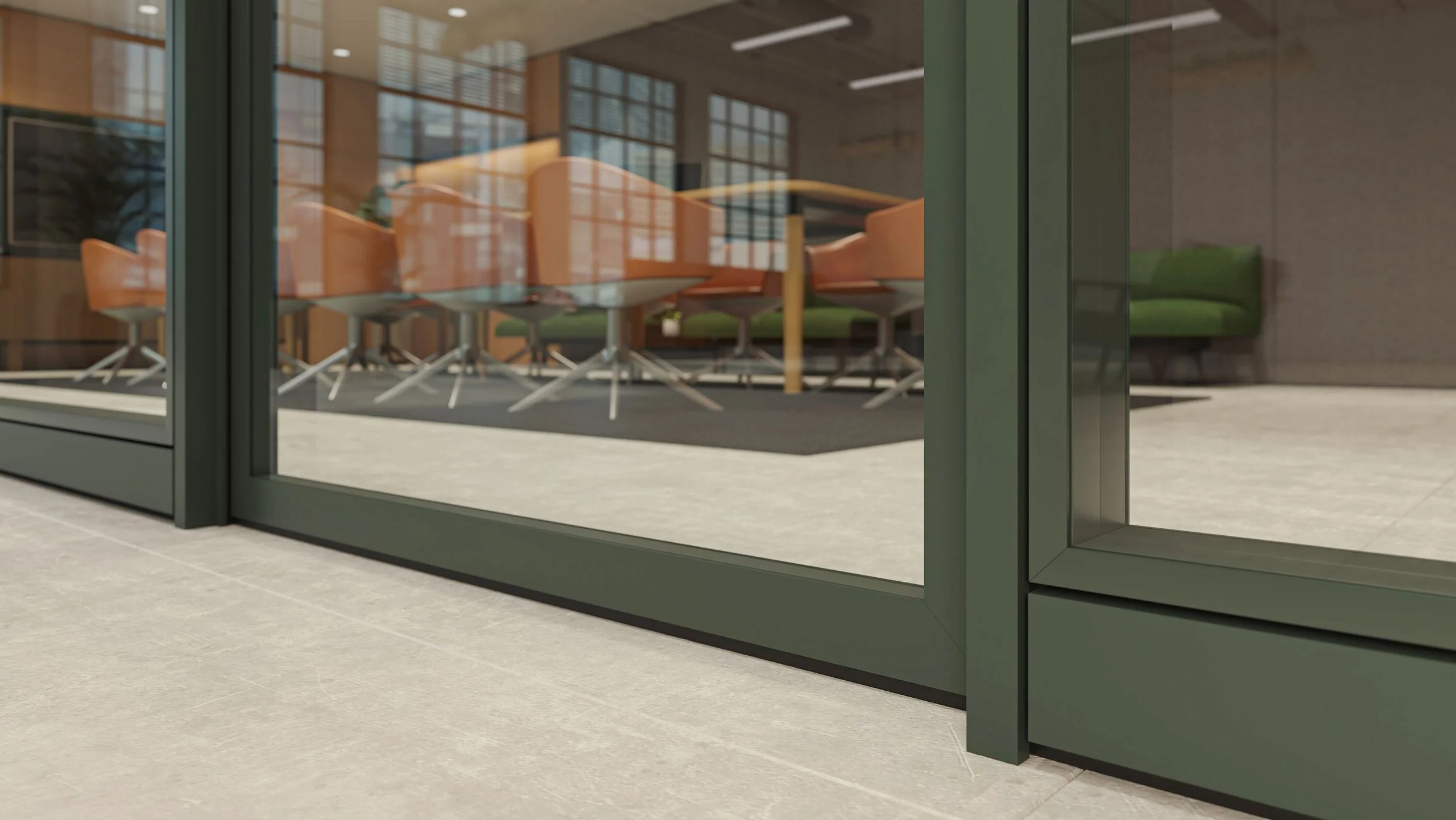

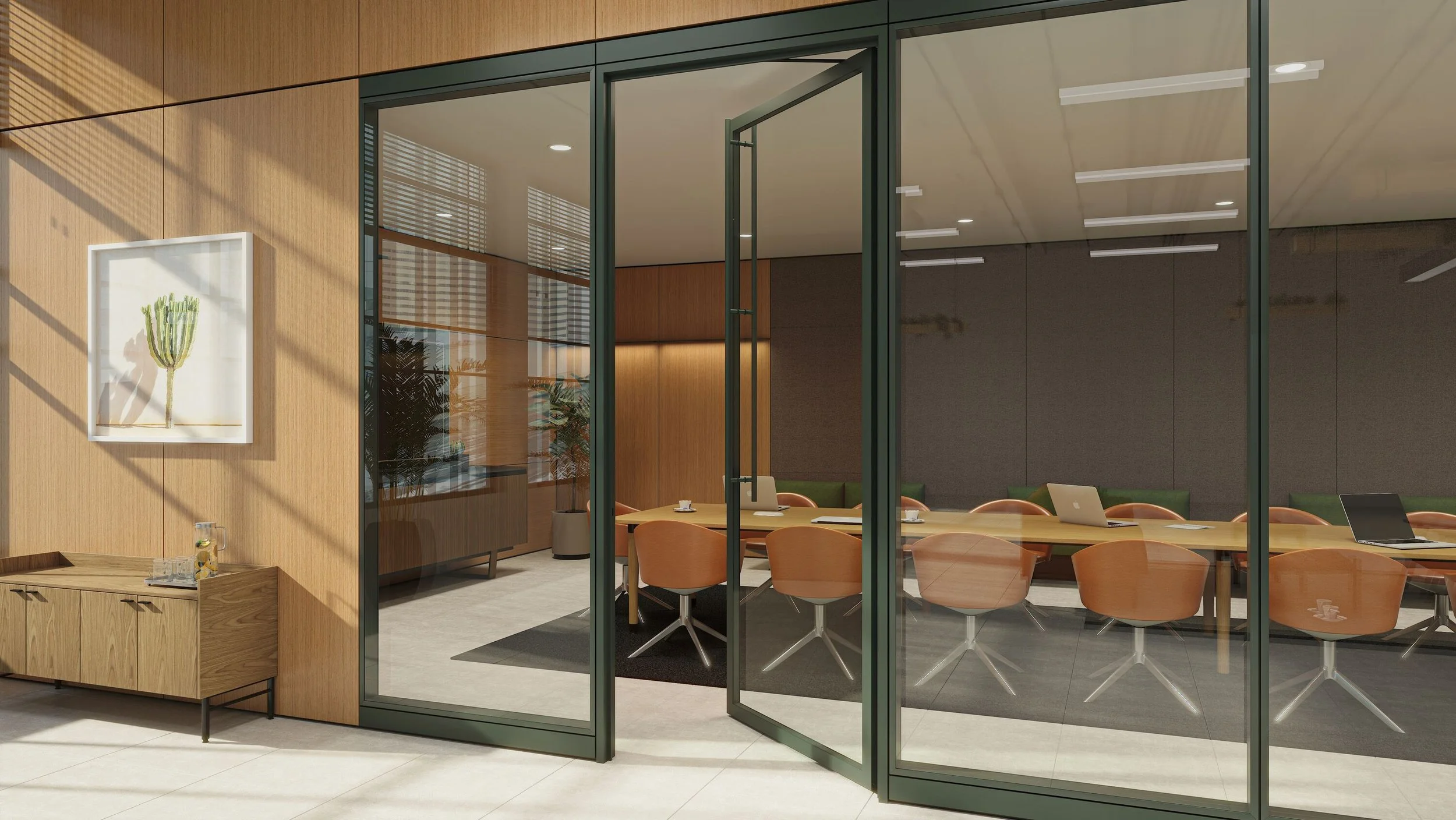

    Door Offering

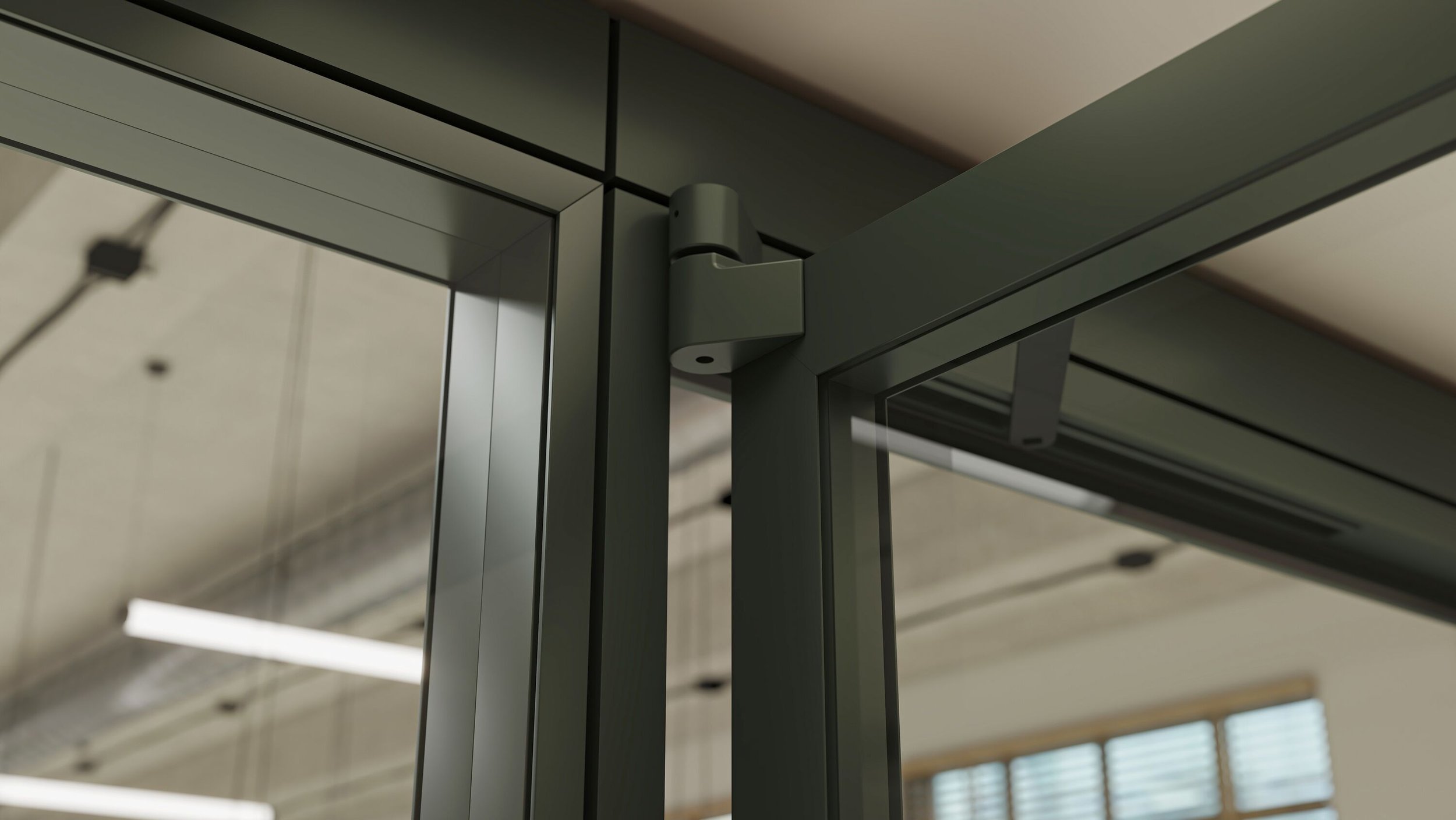

    • Hinged, Pivot and Sliding doors

    • Single and double leaf options available

    • Glass single and double glazed, Solid, Solid with Glass Insert, and Paint Grade Unfinished options

    • Interior and Exterior mounting options available

    Integration

    • Drywall/base building

    • Optos, Focus and Tek Vue and Mullions

    Acoustics

    • Glass STC ratings up to 46 STC

    • Solid STC ratings up to 48 STC

    • Double Glazed Door ratings up to 39 STC

    • NRC ratings up to .85 NRC

    Glass Options

    • 6mm framed glass only

    • Tempered and Laminated

    • Clear and Frosted finishes

    • Single and double glass

    • Square and round corner options

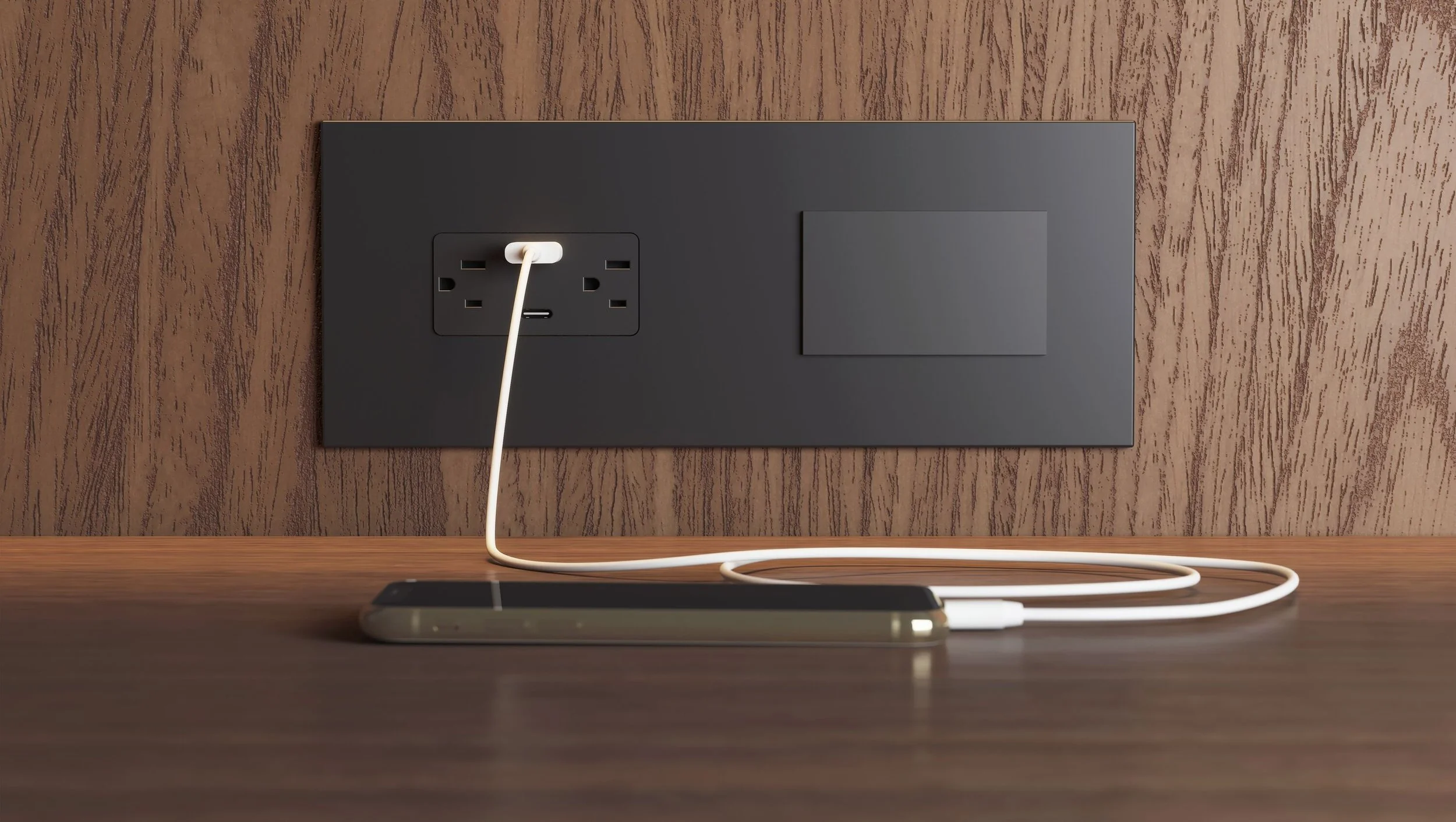

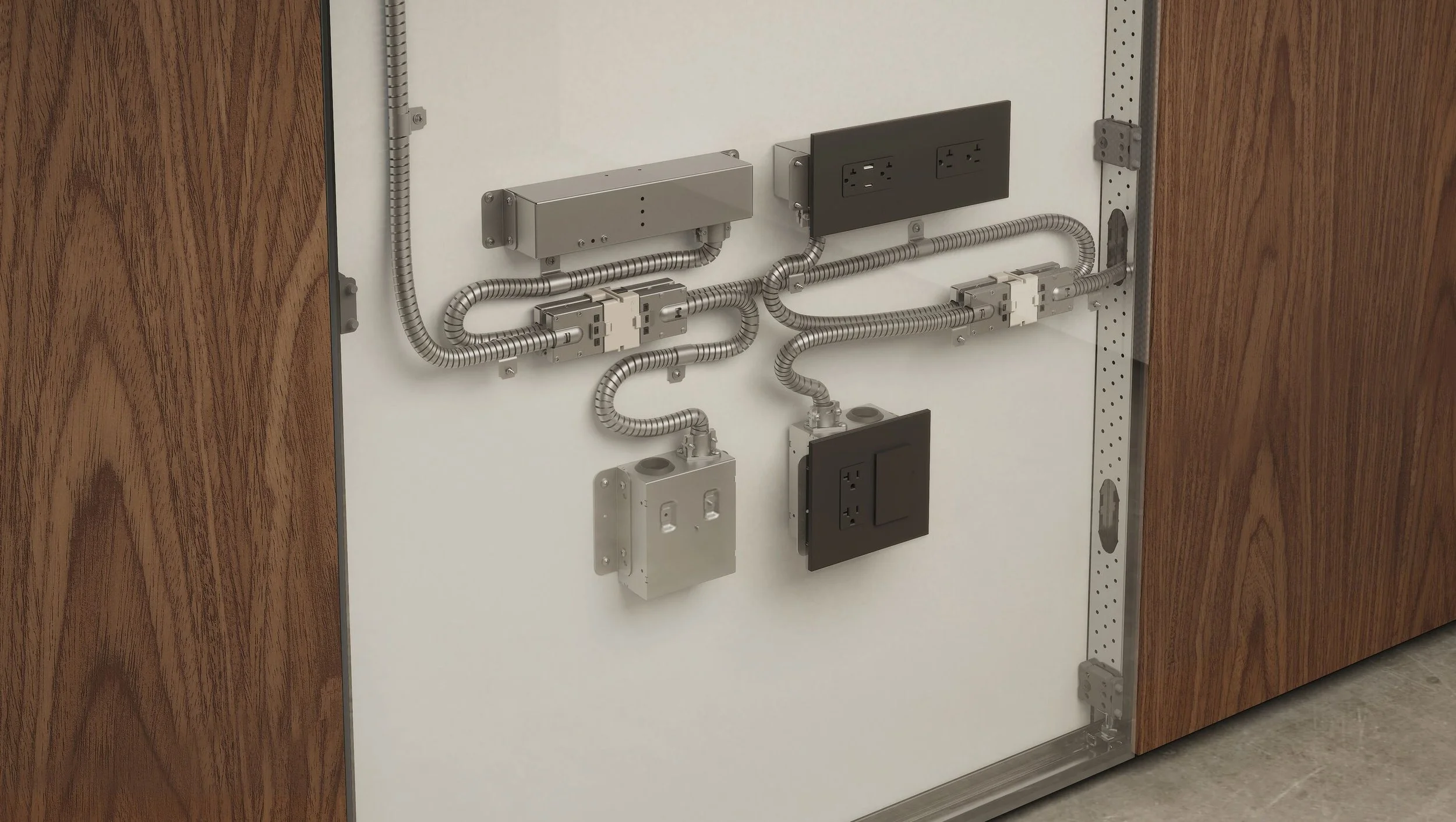

    Electrics

    • Power and Data capability

    • Hard-Wired and Modular connections

    • 4B, 5D, 7G, 8T, and 8K Wire systems

    • USB A+C and Controlled receptacles

    • 15 Amp or 20 Amp receptacles

    Grain + Fabric Direction

    • Vertical grain direction

    • Off-the-bolt fabric direction

  • Altos Data Sheet

View Full Overview
